Automotive Test Rigs

Transmission Testing products for Automotive applications have been our forte at Innotrans and few of the major customised products we offer in this segment are given below; Multi ratio Gear Boxes for Transmission Testing, Helical Differential Gearbox for E-Vehicles, Motor Testing Gear Transmissions.

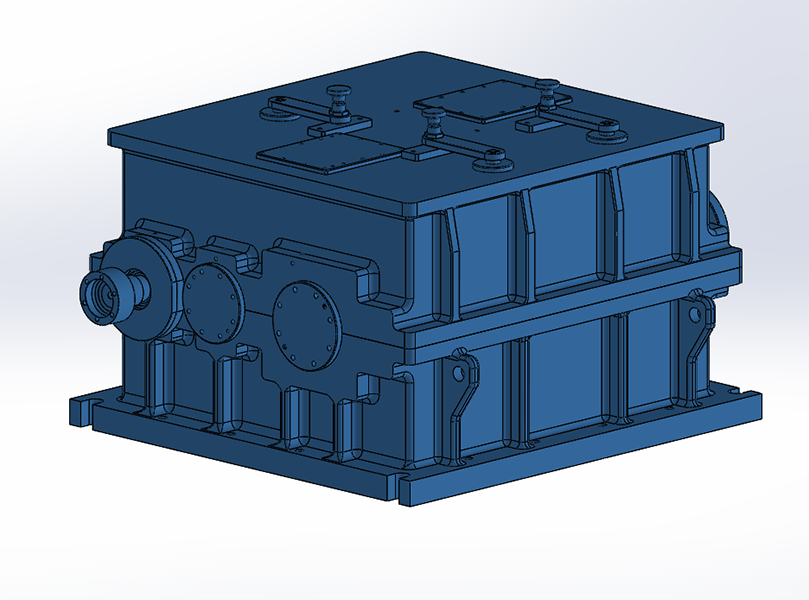

300 kW Multi Ratio Gearbox is used for Transmission Testing

565 kW Step-Up Helical Gearbox is used for Transmission Testing. This Gearbox will be running at 19,000 RPM Output.

500 kW Helical Gearbox is used for Transmission Testing. It has Customized Built-in Lubrication Arrangement to reduce the Space required for Forced lubrication System.

This Customized Bearing Housing is used in Hydraulic Pump Testing. Running at 3600 RPM it can deliver 2000 Nm Torque.

Innotrans Planetary Helical Gear Drives
  • 130 kW Step-Up Gearbox is used for Testing of Transmission Axles.
  • Gearbox will be used to Test the Axles at 6000 RPM.

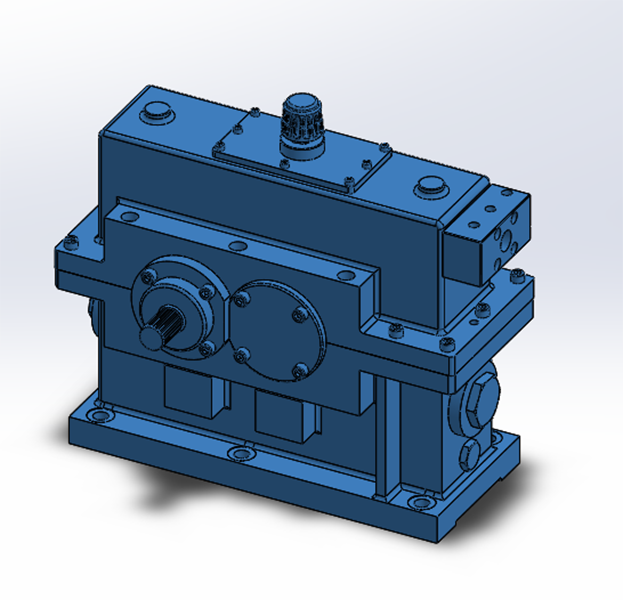

  • 50kW Step-Up Helical Gearbox is used for Testing of High-Speed Pumps.
  • High-Speed Pumps will be tested at 15,000 RPM
Innotrans Planetary Helical Gear Drives

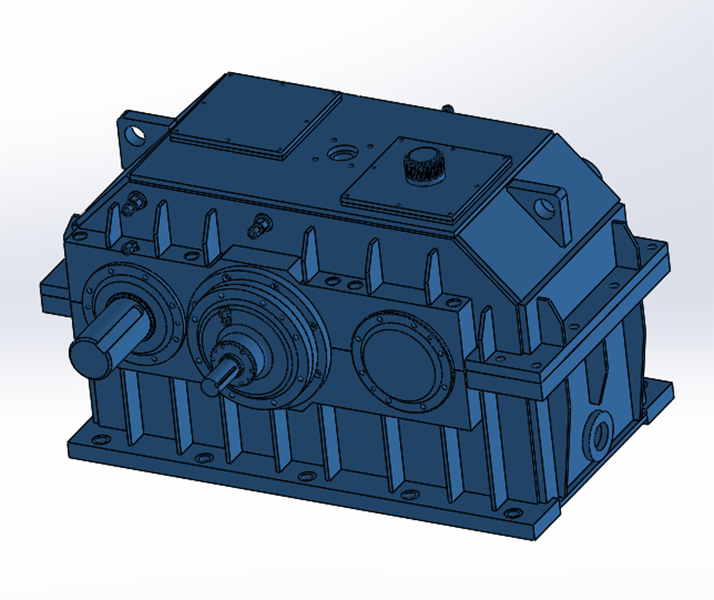

  • 300 kW Helical Differential Planetary Gearbox is used for Torquing Application.
  • This is used as Loop Closing Gearbox in the Test Rig.

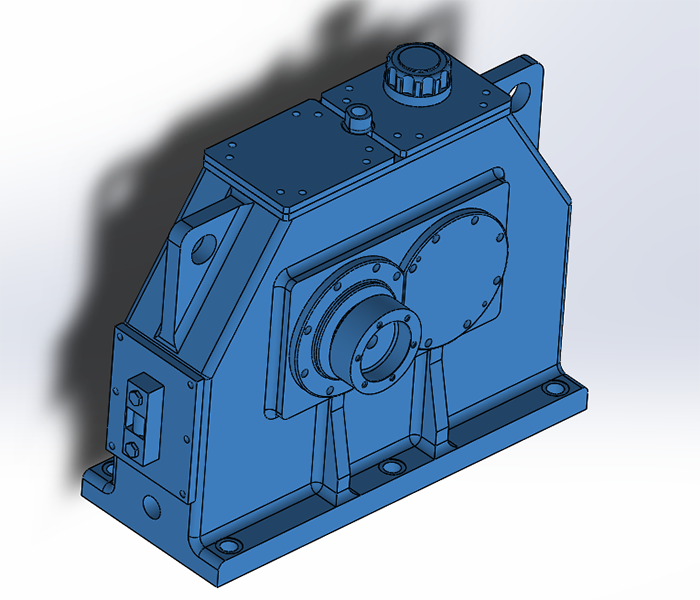

  • 150 kW Step-Up Helical Gearbox is used for Transmission Test Rig.
