INNOTRANS multi ratio gear transmissions are typically designed to have completely customised and tailor made gear ratios as according to the customers applications. Major appplications include gearboxes for Automobile Transmission testing , Motor Testing etc where a variety of gear ratios are required for testing.

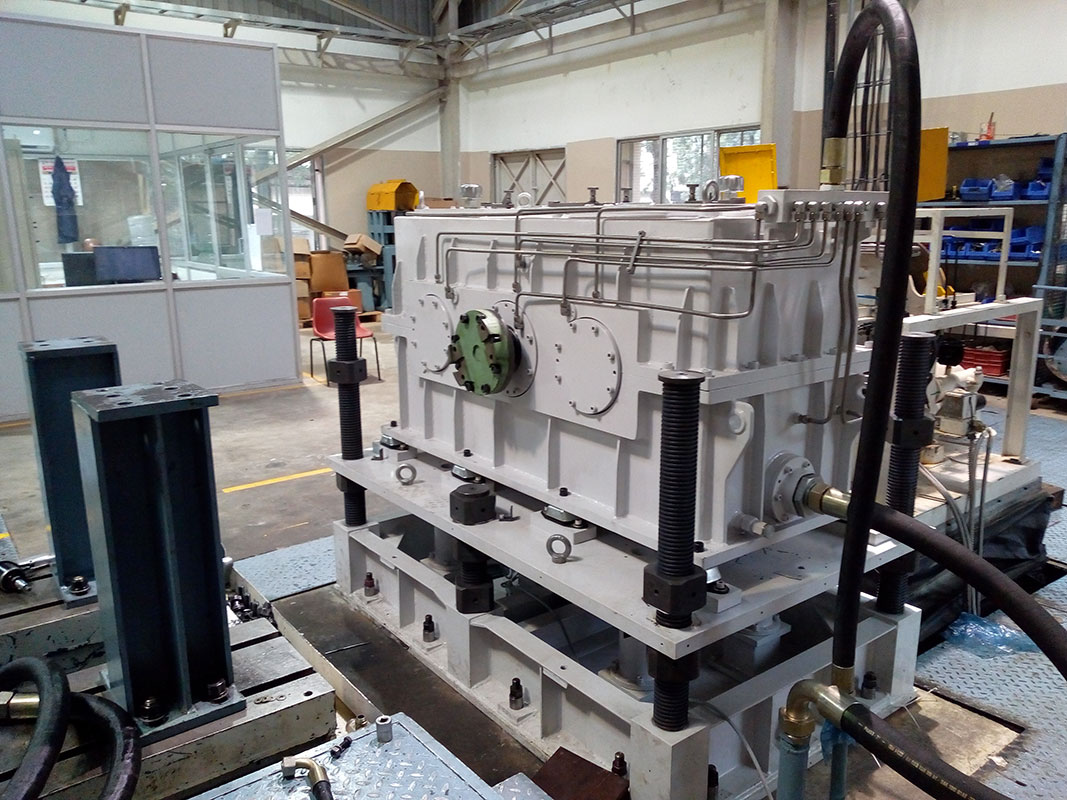

Multi Ratio Gearbox

Multi Ratio Gearbox

Power 300kW
Reduction Ratio 3.25:1, 6.5:1, 9.2:1
Input Speed 9,000 RPM
Output Speed 800 Nm
Maximum Output Torque 5500 Nm
Application For Automotive Testing

Multi Ratio Gearbox

Power 450 kW
Reduction Ratio 1:1, 1:4 (F), 1:4 (R)
Input Speed 4000 RPM
Output Speed 800 RPM
Maximum Output Torque 2900 Nm
Application For Automotive Testing
Multi Ratio Gearbox
Multi Ratio Gearbox

Multi Ratio Gearbox

Power 80kW
Reduction Ratio 2.4:1 & 8:1
Input Speed 3000 RPM
Output Speed 1250 RPM
Maximum Output Torque 4600 RPM
Application For Automotive Testing
