Planetary Transmissions and their Combinations

Planetary Gear Reducer

Reduction Ratio 1314:1
Input Speed 2000 RPM
Output Speed 1.5 RPM
Input Torque 20 Nm at 2000 RPM
Maximum Output Torque 23700 (Operational), 52560 (Peak Static)
Application For Antenna

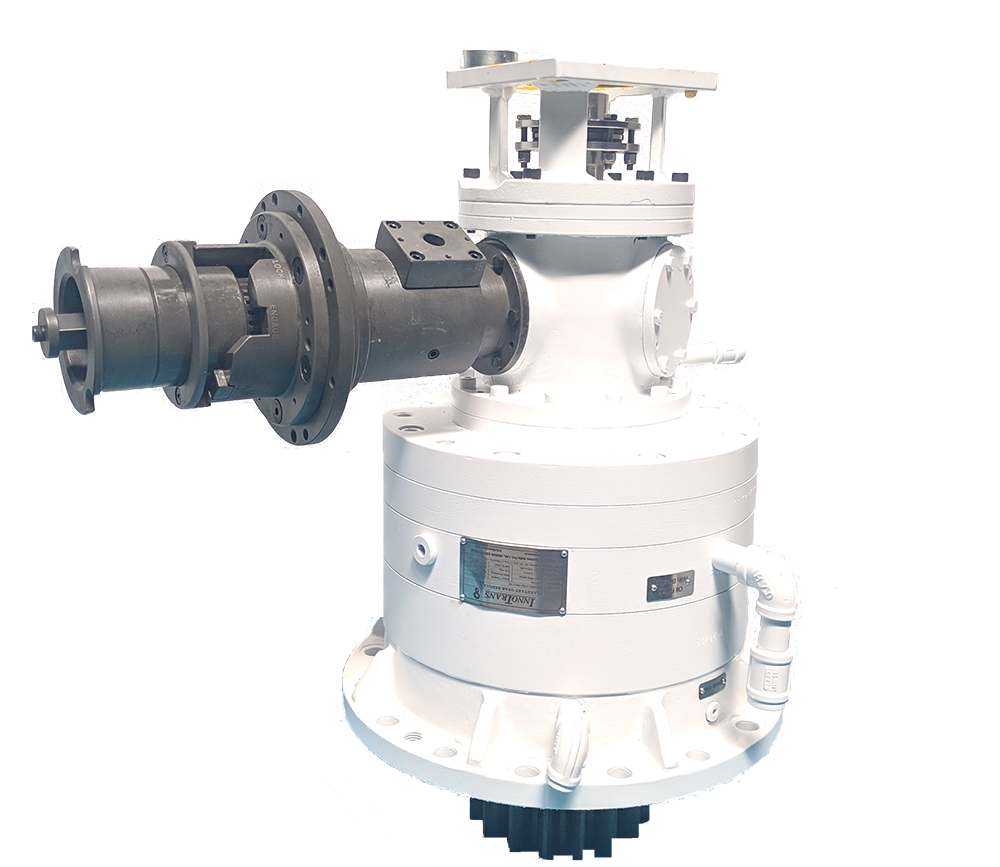

Planetary Gear Reducer

Reduction Ratio Ranges from 180 to 224 with Manual Handle Ratio of 450:1
Input Speed 3000 RPM
Output Speed 16 RPM
Input Torque 26 Nm
Application For Antenna
Planetary-Gear-Reducer,-Ratio-180_1

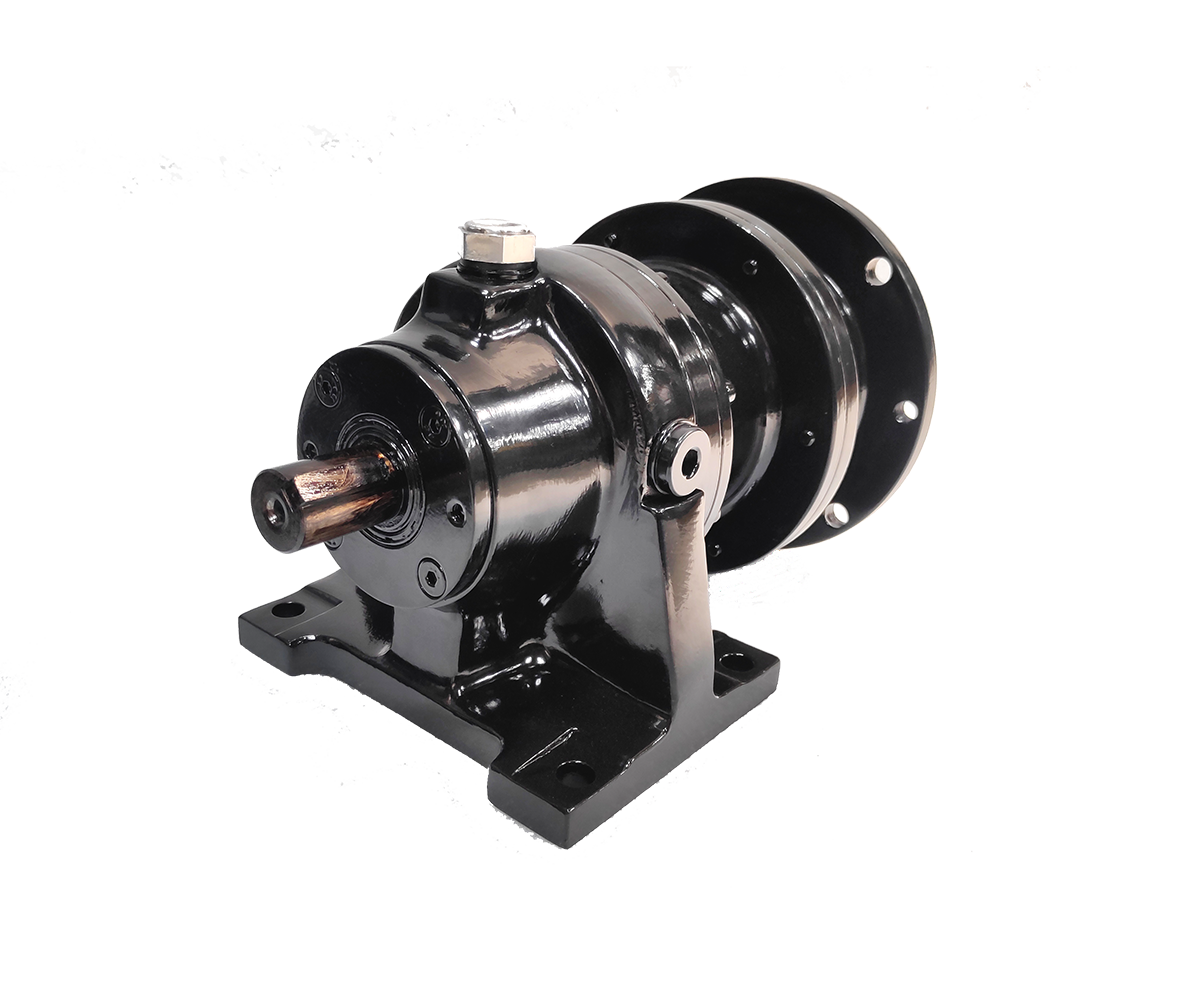

Planetary Gear Reducer

Reduction Ratio 7:1
Input Speed 10 RPM
Application For Manual Cranking of Motor Non-Drive End Shaft
